ENCLOSURE SOLUTIONS / OUTDOOR
Outdoor
cabinets.
Wall mount and floor standing enclosures for CCTV, servers, UPS, network, and MATV equipment. Removable side panels with stainless-steel-mesh-protected ventilation louvers keep equipment cool while sealed against the elements.
OUTDOOR CABINET
01 / SPECIFICATIONS
| Protection rating | IP 20 / IP 55 |
|---|---|
| Material | SPCC steel, aluminum, or stainless steel |
| Width | 600mm & 800mm |
| Depth | 300, 450, 600, 800 & 1000mm |
| Construction | 1.5–2mm gauge steel |
| Loading rate | 200–400 Kg |
| Front door | 180° opening, tempered glass or metal, IP-rated gaskets, swing cam lock |
| Cable access | Bottom, gasket-protected |
| Compliance | ANSI/EIA-RS-310-D, IEC 297-2, DIN 41491 |
02 / CONFIGURATIONS

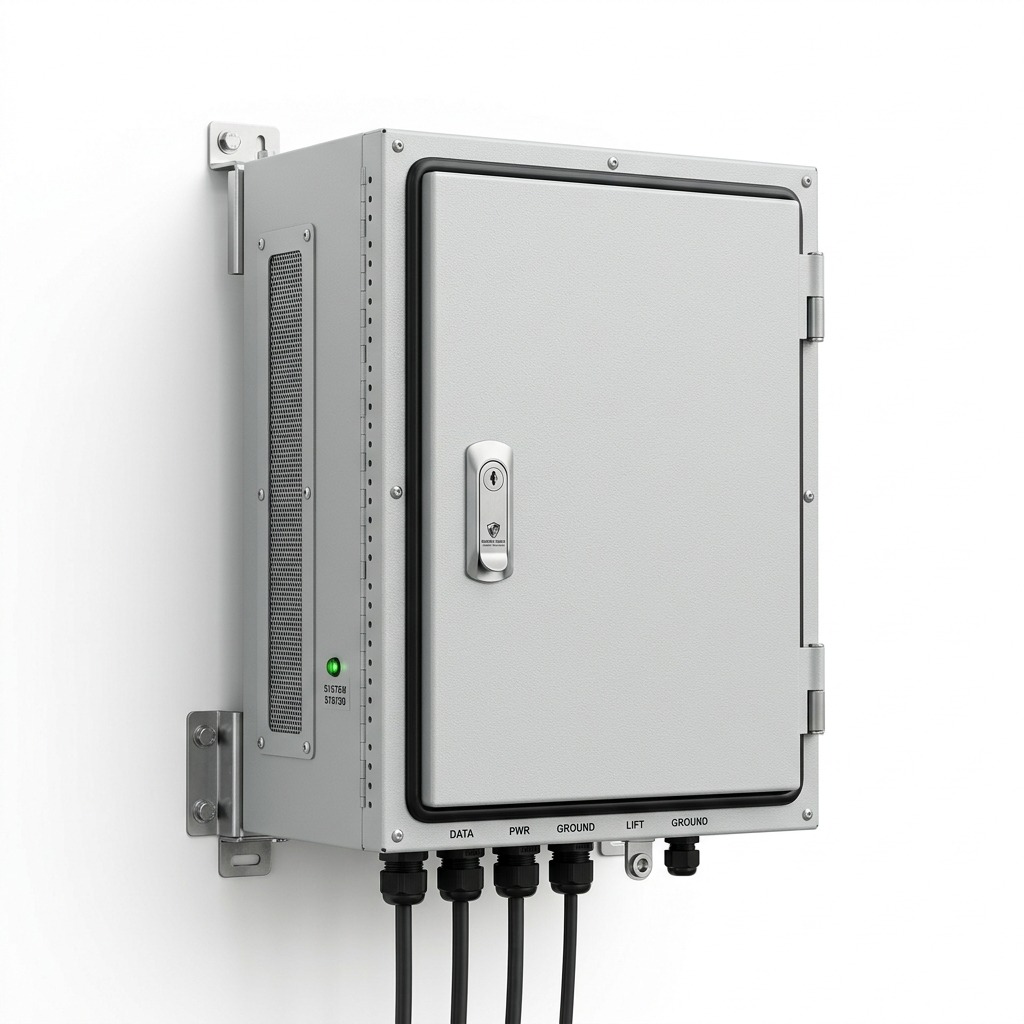

Wall Mount
Compact wall-mounted outdoor enclosure designed for smaller, secure equipment loads.

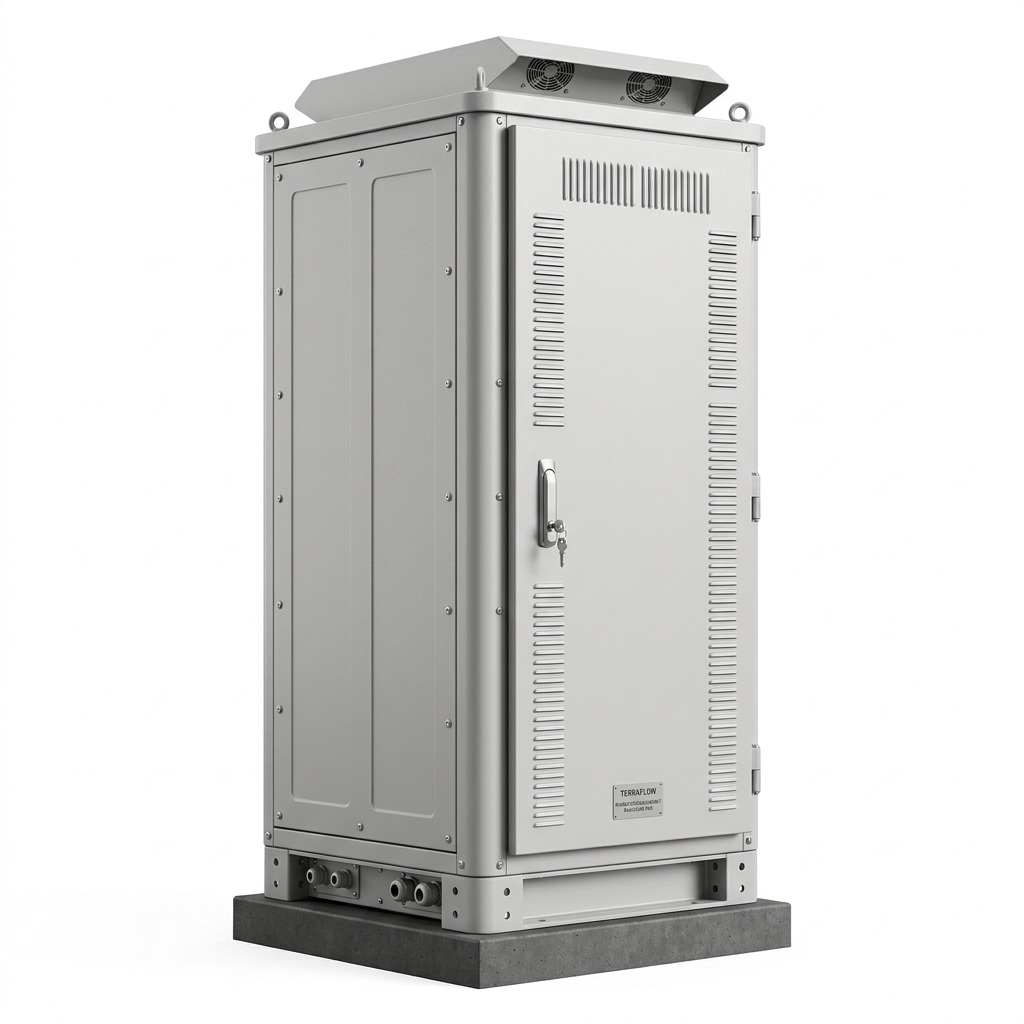

Floor Standing
Larger free-standing outdoor cabinet providing maximum capacity for high-density deployments.
Ventilation
Stainless-steel-mesh-protected louvers on removable side panels to maintain thermal flow.
