ENCLOSURE SOLUTIONS / FLOOR STANDING
Floor Standing Cabinets
Supreme Series.
Heavy-duty frame cabinets, 22U–47U, for data and telecom equipment — complete with optional cooling fans, cable management, shelves, castors, plinth, and door-operated system light.
SUPREME SERIES CABINET
01 / SPECIFICATIONS
| Protection rating | IP 20 / IP 55 |
|---|---|
| Material | SPCC steel or aluminum body |
| Width | 600, 800 & 1000mm |
| Depth | 600, 800, 1000 & 1200mm |
| Construction | 1.5–2mm gauge steel |
| Loading rate | 300–1500 Kg |
| Doors | 180° opening, tempered glass or perforated metal, cam lock |
| Cable access | Top and bottom |
| Compliance | ANSI/EIA-RS-310-D, IEC 297-2, DIN 41491 |
02 / AVAILABLE OPTIONS

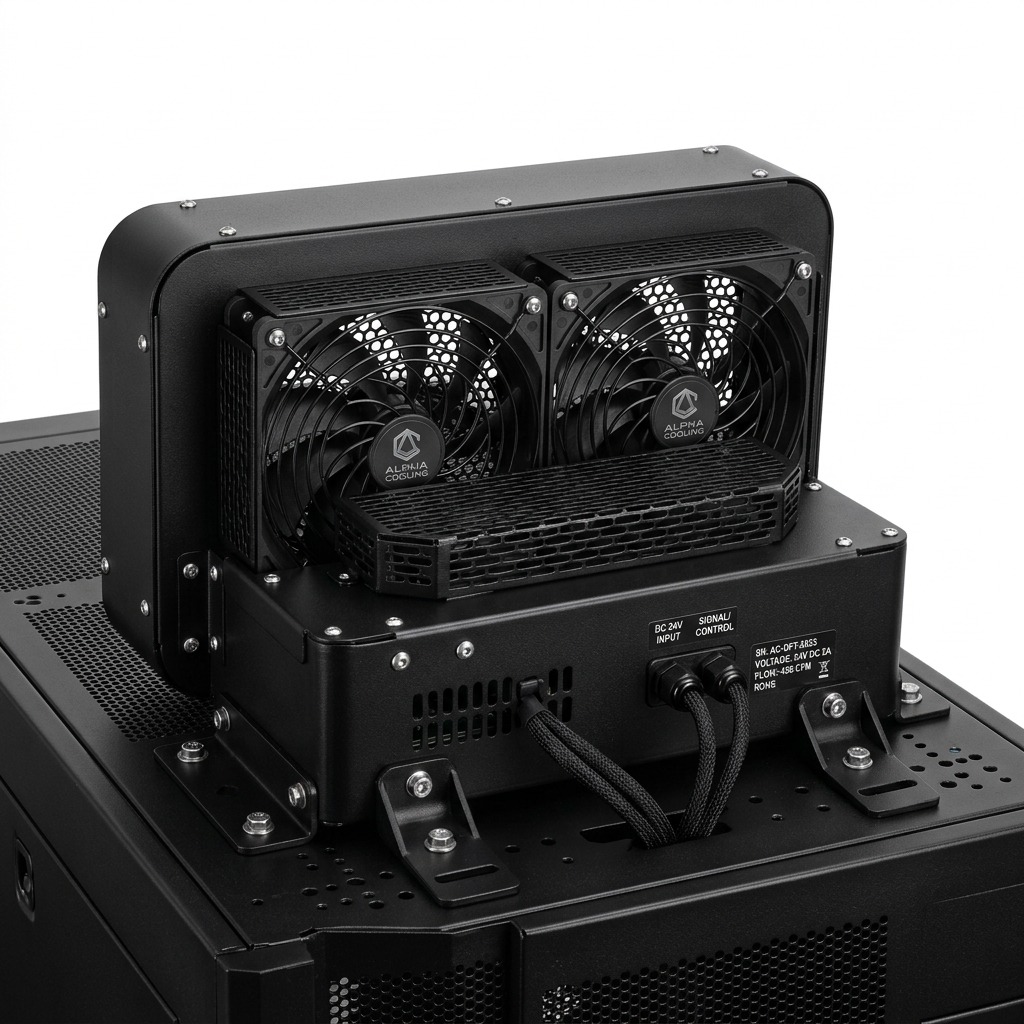

Cooling Fans
Roof-mounted fan units engineered for active heat extraction and thermal management.

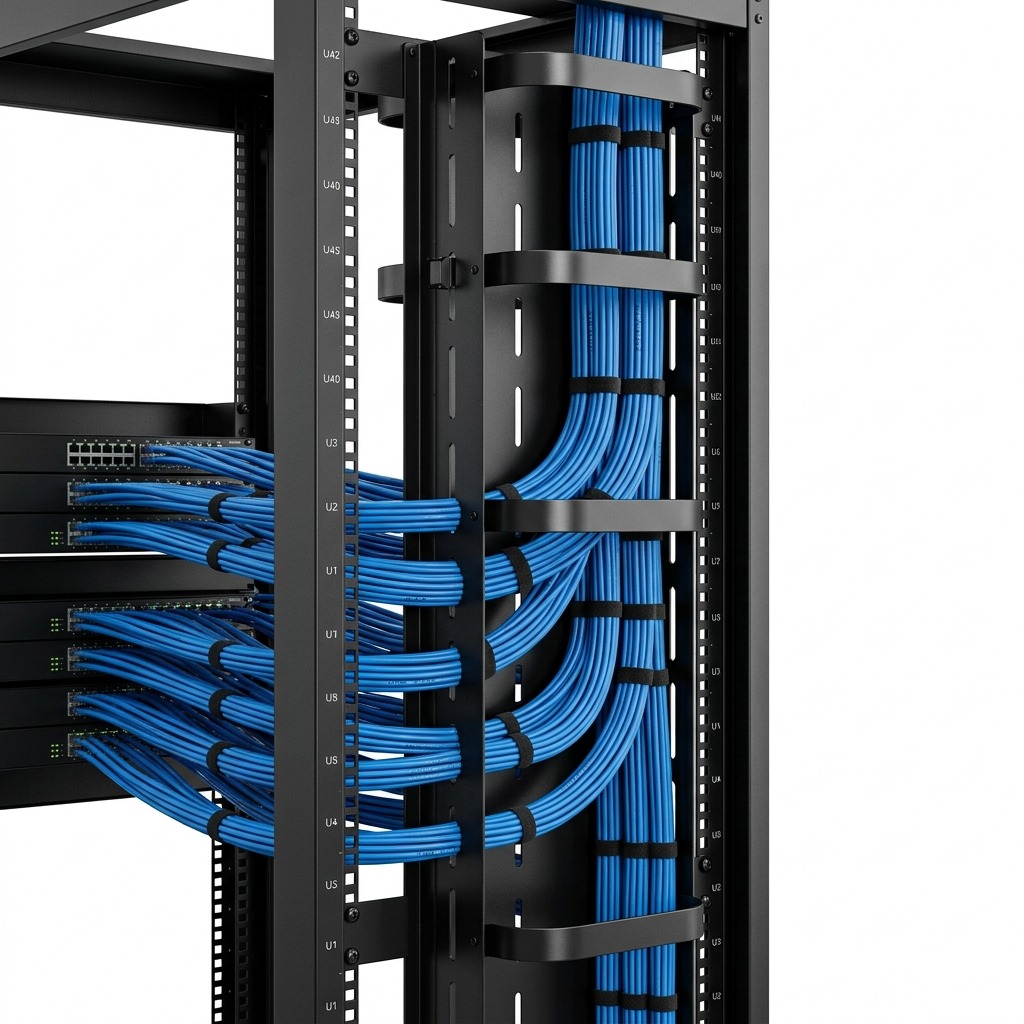

Cable Management
Vertical and horizontal cable organization accessories to maintain precise routing and airflow.

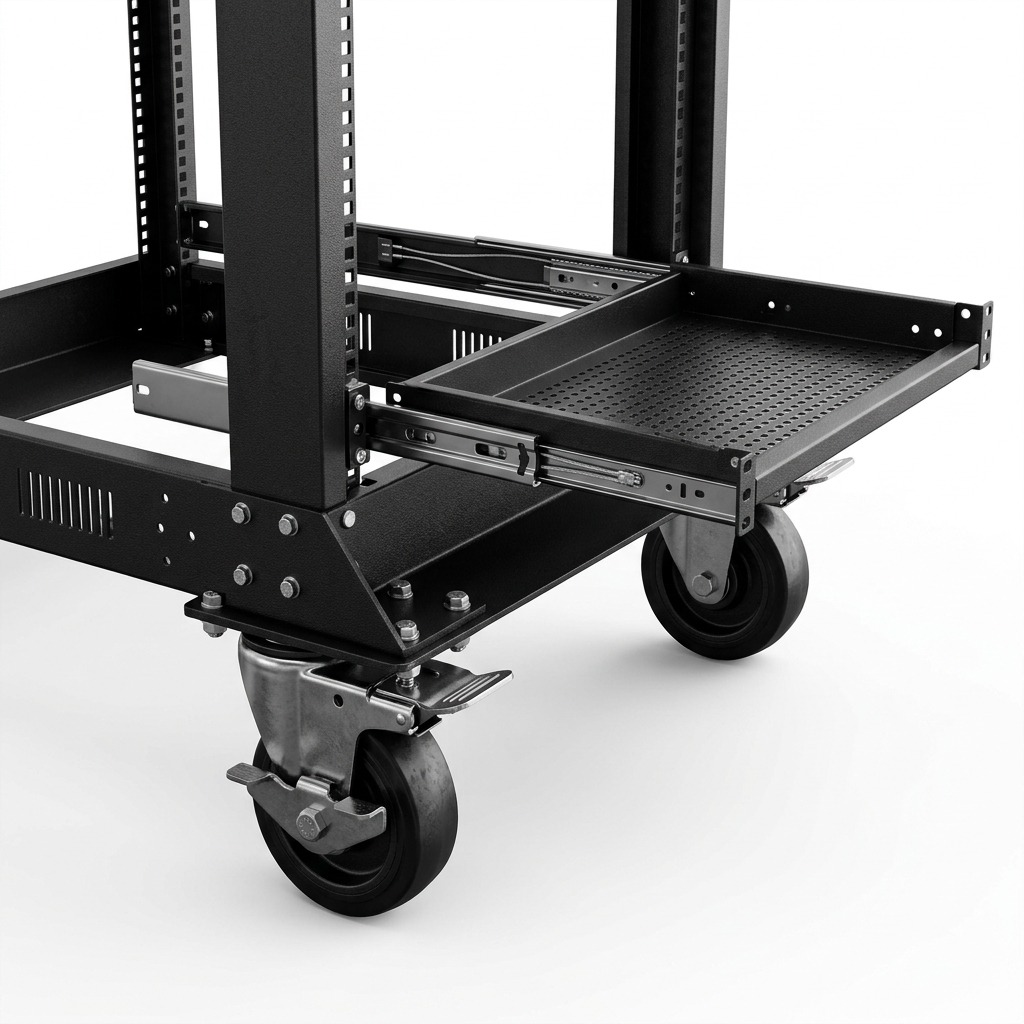

Shelves & Castors
Fixed or sliding shelves, alongside heavy-duty mobility castors integrated into a plinth base.
