Horizontal
cabling.
Copper cabling from Category 5 through Category 7 — UTP, F/FTP, and S/FTP constructions covering current LAN needs up to 10G BASE performance on a 100m channel.
CAT 7 S/FTP CABLE

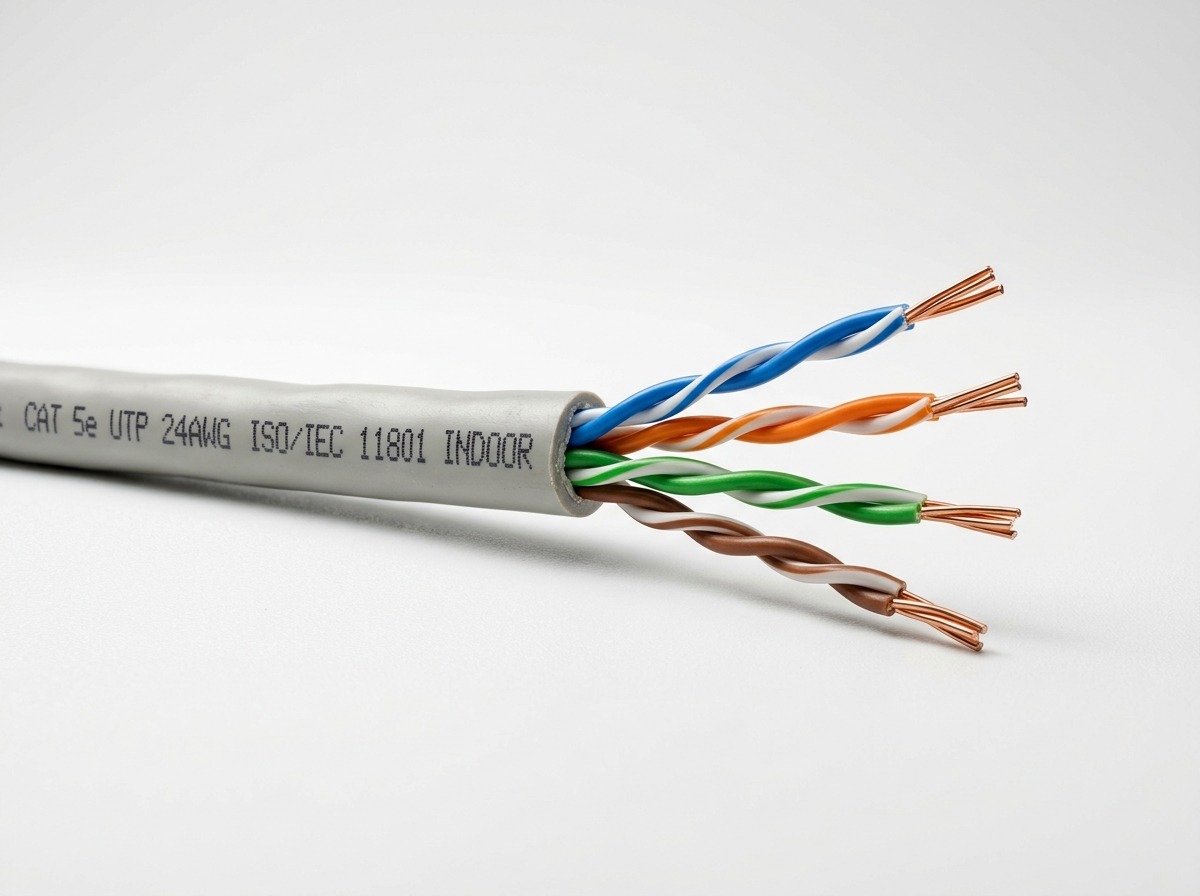

| Cat 5 UTP — Indoor | |
|---|---|
| Conductor | Bare copper, 24 AWG |
| Jacket | PVC or LSZH halogen-free |
| Standard | ANSI/TIA/EIA-568-A, ISO/IEC-11801 |

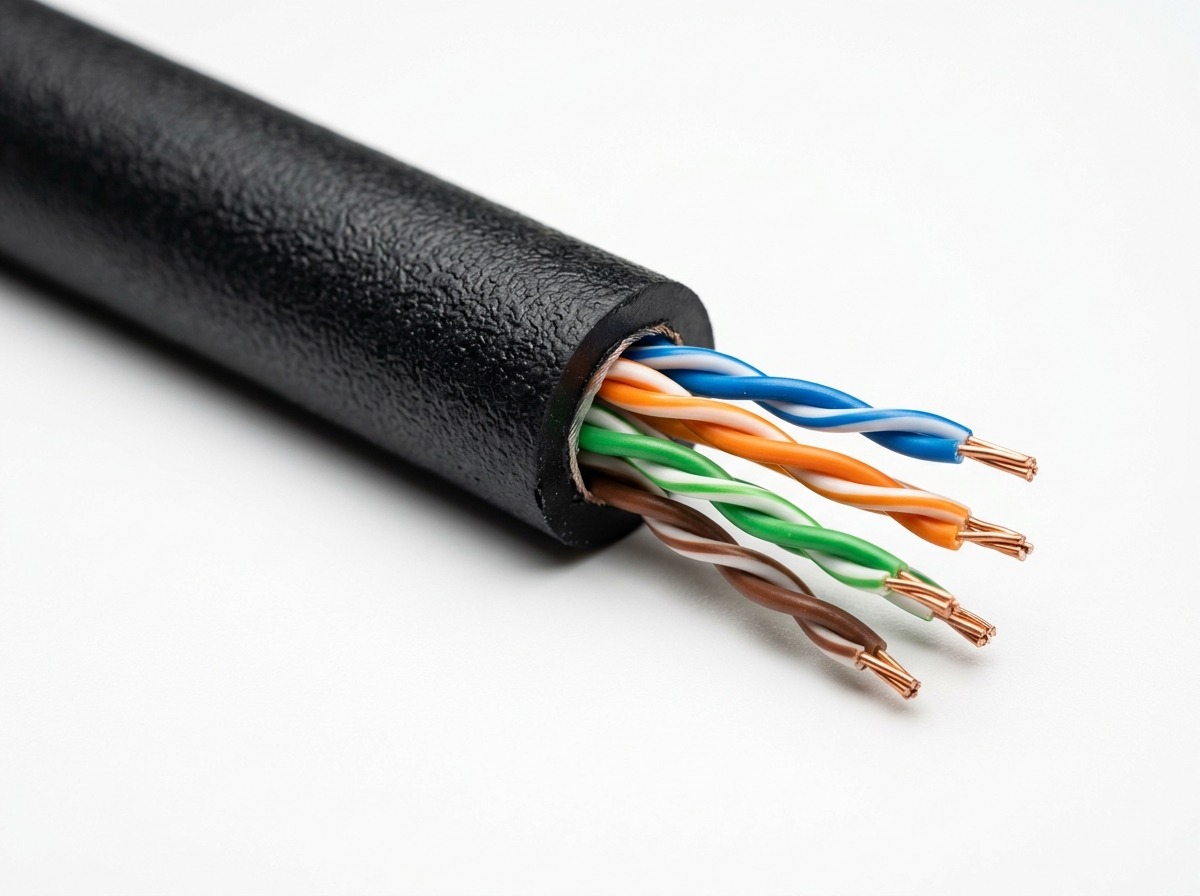

| Cat 5 UTP — Outdoor | |
|---|---|
| Conductor | Bare copper, 24 AWG |
| Jacket | PVC/LSZH, jelly-filled, tape-wrapped |
| Standard | ANSI/TIA/EIA-568-A, ISO/IEC-11801 |
Cat 6 UTP
8-conductor, 4-pair, PVC or halogen-free jacket.
Cat 6 F/FTP
Overall aluminum-foil shield around the 4-pair core.
Cat 6 S/FTP
Individually foil-shielded pairs plus overall tin-coated copper braid.
Cat 6A UTP
Unshielded, 4-pair, higher-bandwidth variant of the Cat 6 build.
Cat 6A F/FTP
Individually shielded pairs, tin-coated drain wire, overall foil wrap.
Cat 6A S/FTP
Individually shielded pairs, overall tin-coated copper braid.
Enhanced Cat 6A FTP
4-pair with rip cord, overall aluminum-foil wrap.

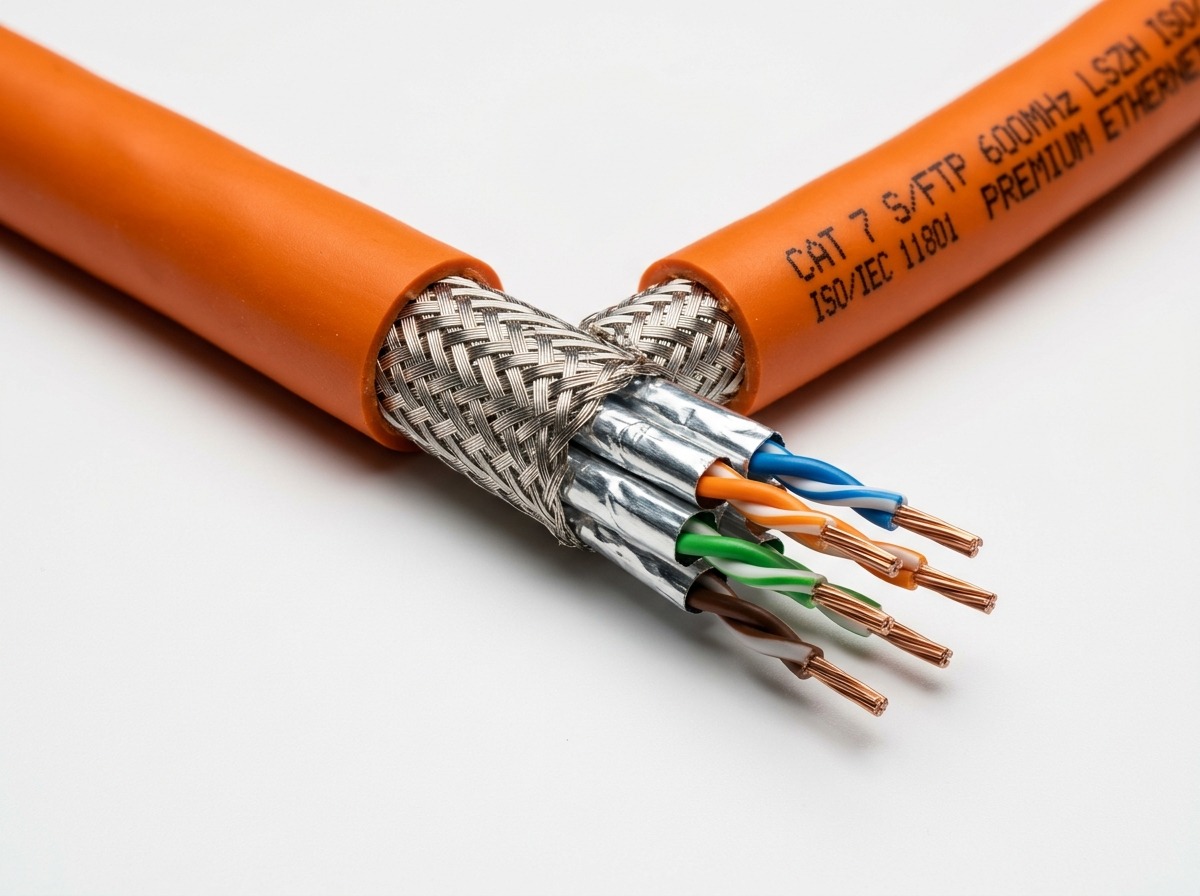

Cat 7 S/FTP
Full specification featured below. 10G BASE capable.
Category 7 S/FTP
Engineered for maximum bandwidth and stringent shielding requirements, capable of supporting 10G BASE performance on a full 100-meter channel.
