Wall Mount
cabinets.
E-Series cabinets for 19″ data/telecom equipment, 4U–18U. Single-section units mount directly to the wall; double-section units hinge the front off a wall-mounted rear section for full rear access — housing CCTV, servers, UPS, network, and MATV equipment.
WALL MOUNT CABINET
01 / SPECIFICATIONS
| Protection rating | IP 20 |
|---|---|
| Material | SPCC cold rolled steel |
| Width | 600mm |
| Depth | 450, 550, or 600mm (single-section); 560 or 600mm (double-section) |
| Construction | 1.2–1.5mm gauge steel |
| Loading rate | Up to 30 Kg |
| Front door | 180° opening, tempered glass or perforated metal, round lock |
| Cable access | Top and bottom |
| Compliance | ANSI/EIA-RS-310-D, IEC 297-2, DIN 41491 |
02 / CONFIGURATIONS

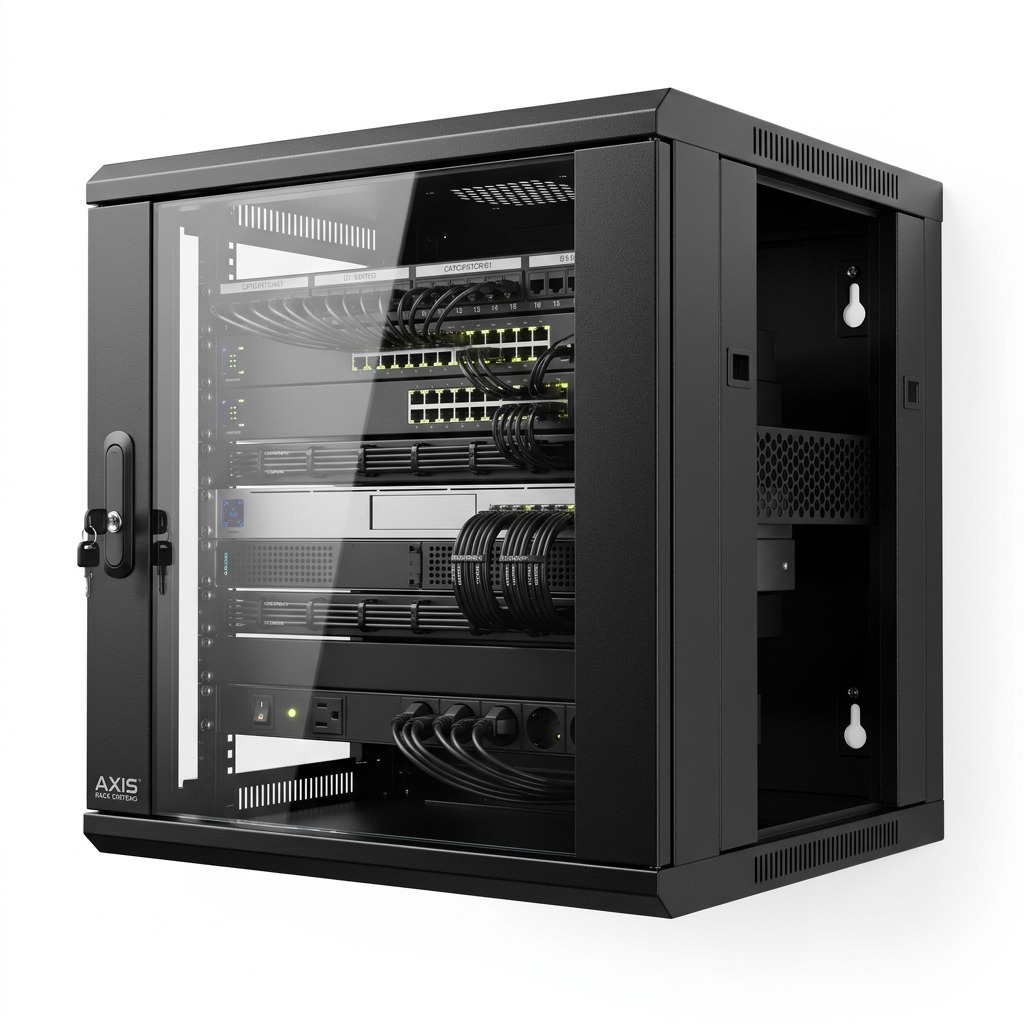

Single Section
Mounts directly to the wall, providing secure front-access to essential 19″ network and telecom equipment.

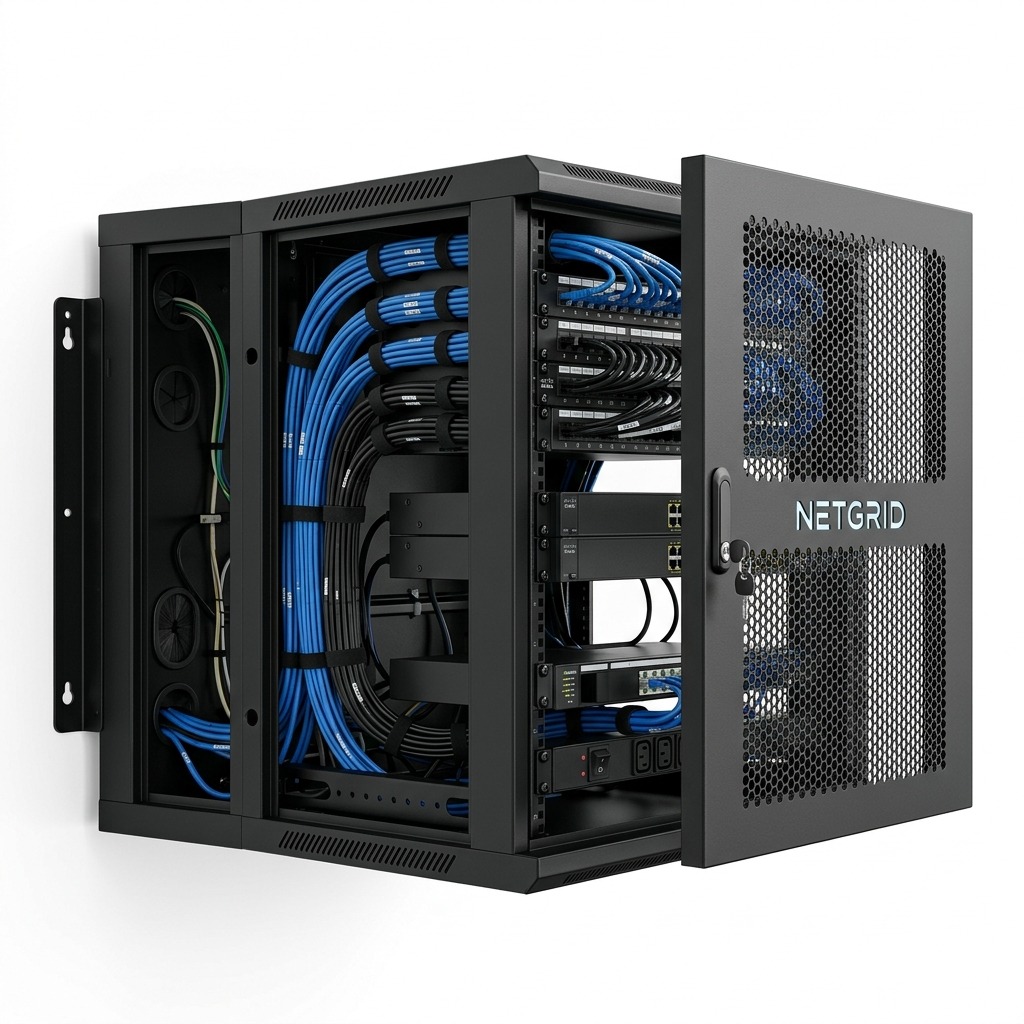

Double Section
Front section hinges open off a fixed wall-mounted rear section, allowing for full rear cable access and easy maintenance.
