AVAYO APG2-J Series Large Joist Pedestal
HEAVY JOIST PAVING
APG2-J Large Joist
engineered for heavy beams.
50-60mm Joist Capacity
Recyclable PP
High Pressure Resistance

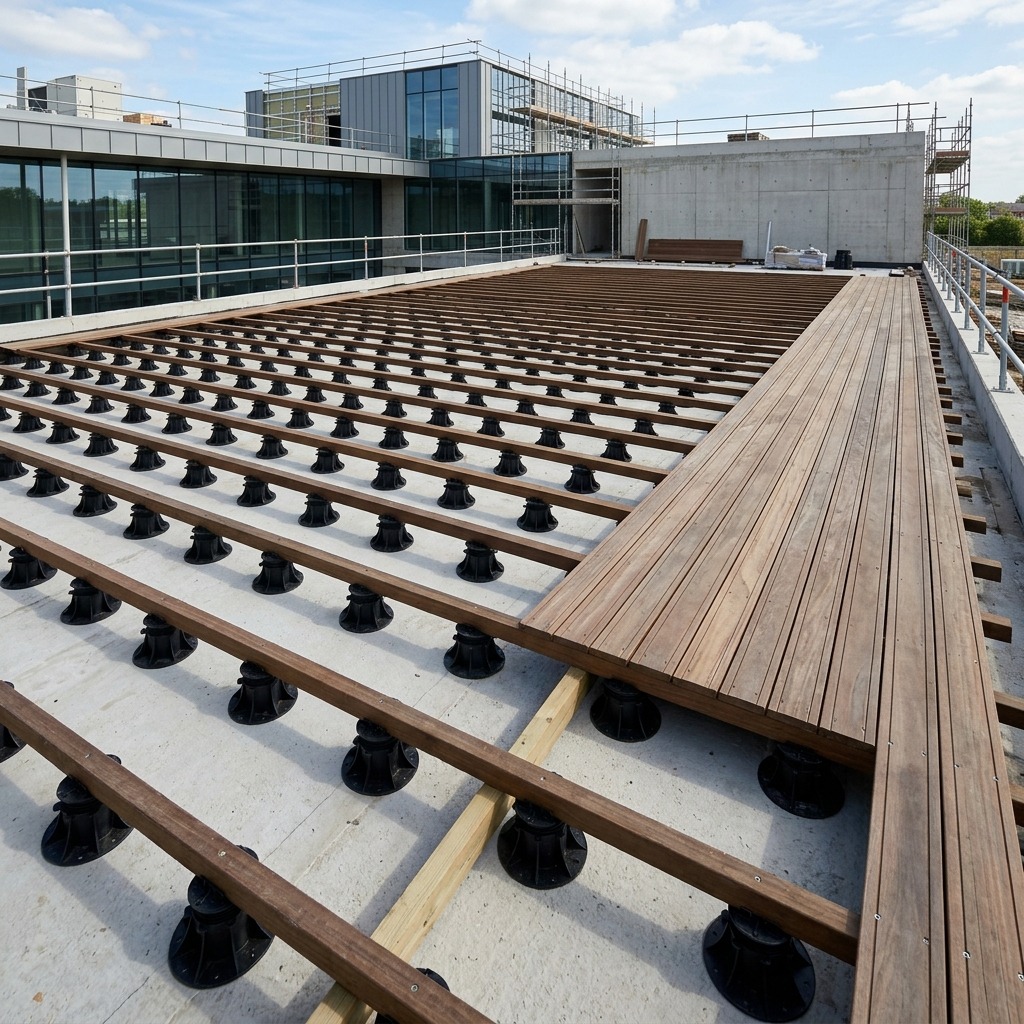

The APG2-J Large Joist series is precision-engineered for outdoor anti-corrosion wood and plastic wood floor joists. The large top component features an expanded joist slot, providing a secure and stable cradle for thicker beams (50mm to 60mm) without the need for destructive ground fastening in most applications.

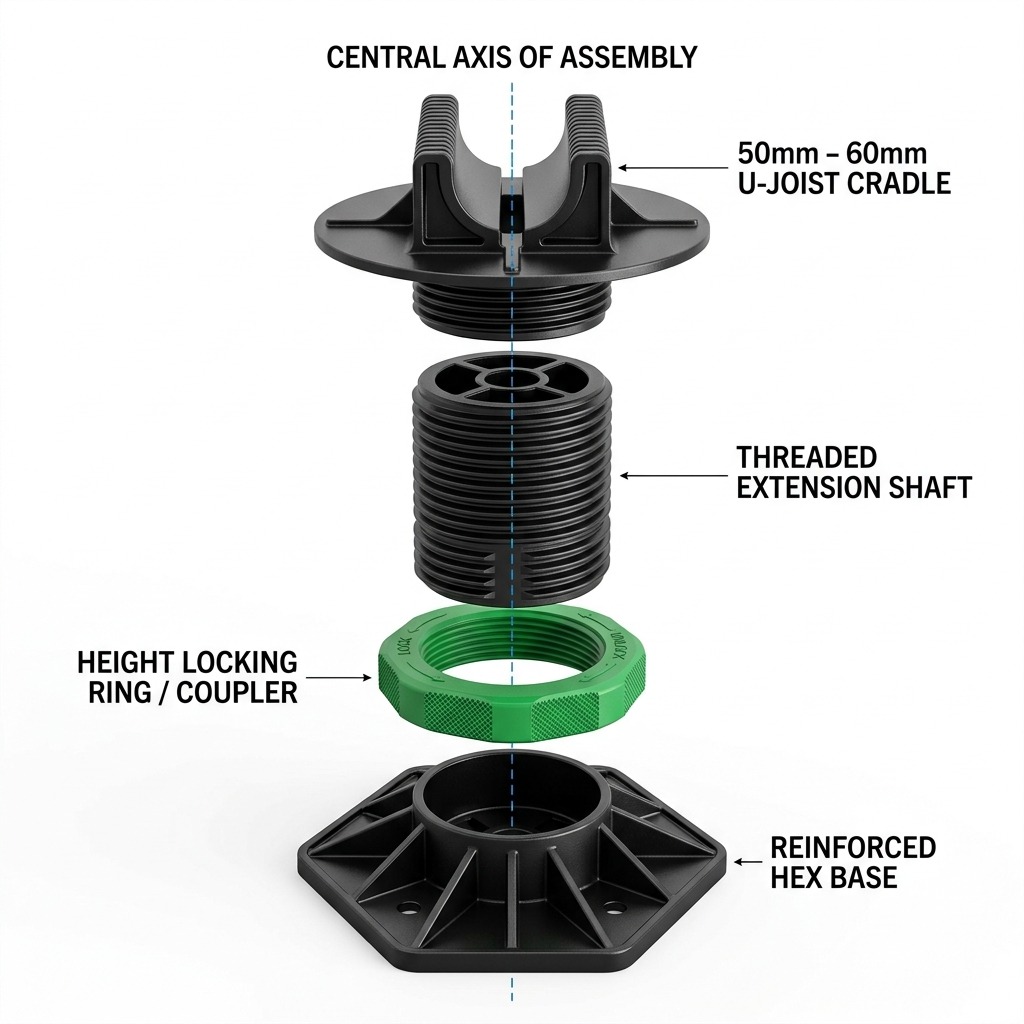

System Architecture
The system utilizes a modular stack including a reinforced hexagonal base, adjustable height extensions, a secure fastening ring, and a specialized large joist head. This setup allows for rapid installation, easy pipeline maintenance beneath the decking, and massive load-bearing capacity.
Technical Specifications
MaterialEngineering Polypropylene (PP)
Load Bearing2 – 2.7 ton
Joist Slot Size50mm – 60mm
Height Adjustment90mm – 1127mm (Models 01 to 15)
Slope Adjustment0 – 5 Gradients via adjusting base
Base & Top DiametersBase: 200-220mm | Top: 150mm
