AVAYO Ceiling Clip-In System
Description: The Clip-in Ceiling system is probably the most widely used metal tile ceiling system. The tiles, manufactured to fine press tool tolerances, are clipped into a concealed Tee Bar grid. Tiles are automatically levelled in the grid by special ‘Pip & Stop’ registers.

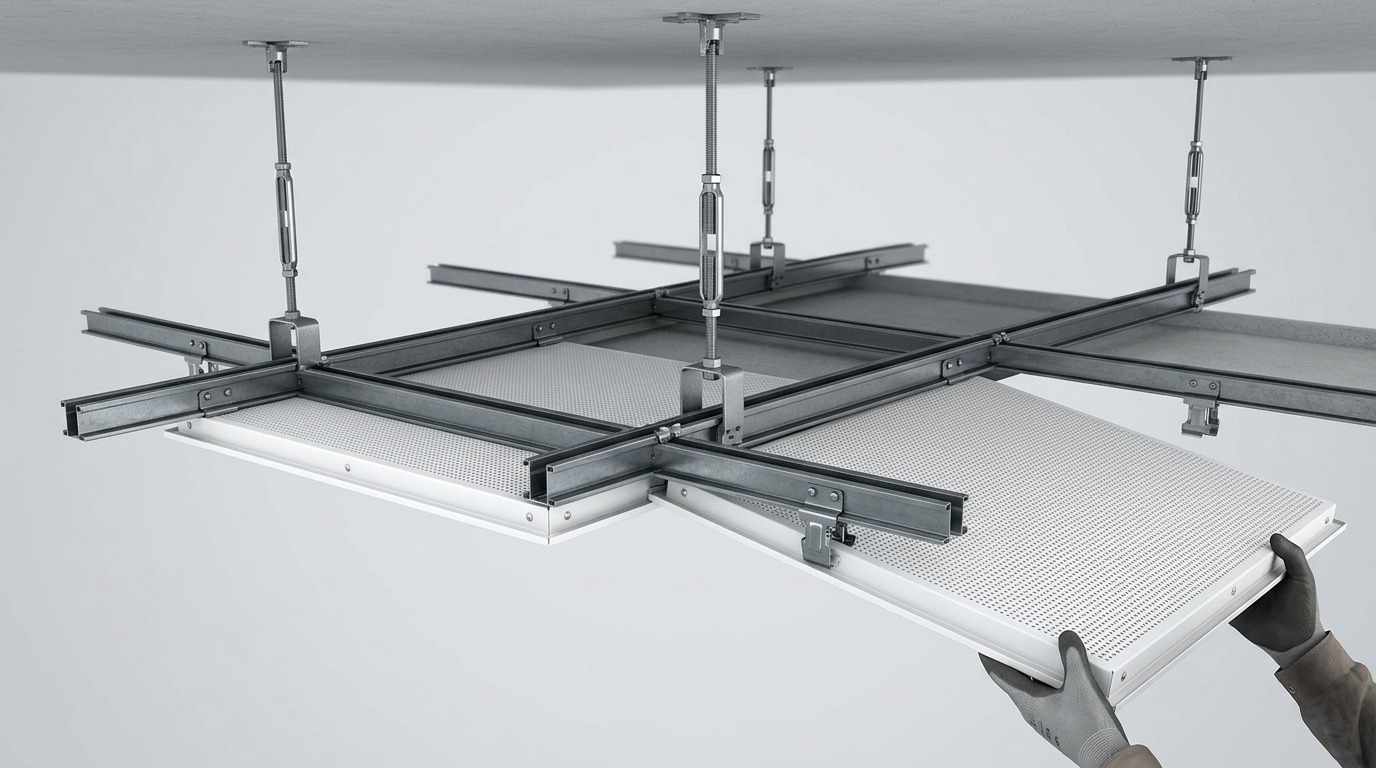

System Architecture & Assembly
The robust grid system is easily installed, and tiles can be removed and replaced seamlessly for access to HVAC, wiring, and plumbing services.
Suspension System Specifications
| Component | Standard Consumption / Dimension |
|---|---|
| Spring Tee Runner | L = 4000 mm |
| Rod Hanger | L = 1000 mm |
| Edge Trim | L = 4000 mm |
| Additional Accessories | Runner Splice, Adjustment Clip |
| Acoustic Capabilities | Acoustic felt backing for perforated panels |
