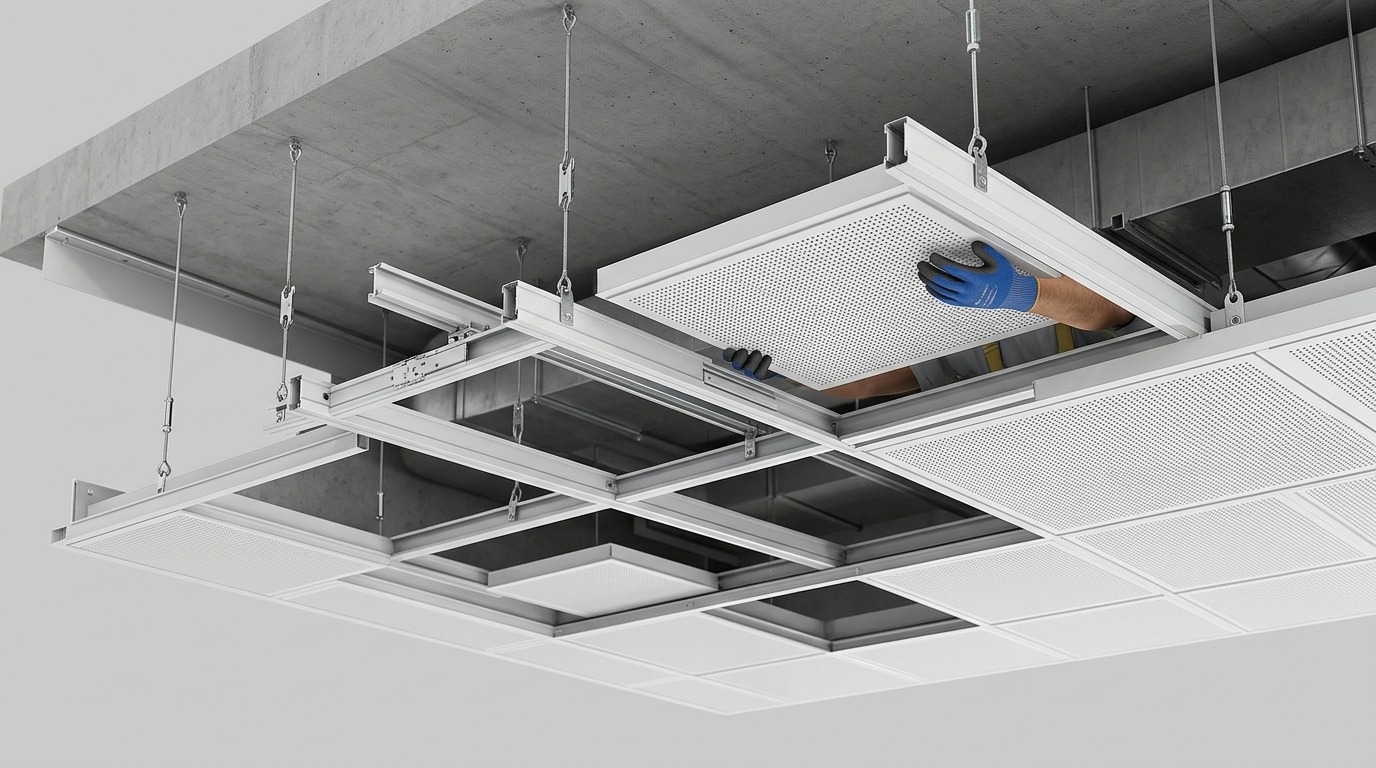

AVAYO Lay-In Ceiling Overview

Description: A suspended clip-based ceiling system is a modular design comprising individual ceiling tiles or panels that are held in place by hangers or clips. These elements are suspended from the main ceiling structure, enabling easy access for maintenance and individual tile replacement. This system is commonly implemented in commercial and industrial settings, and can be configured to facilitate the integration of various building services.

System Architecture & Profiles

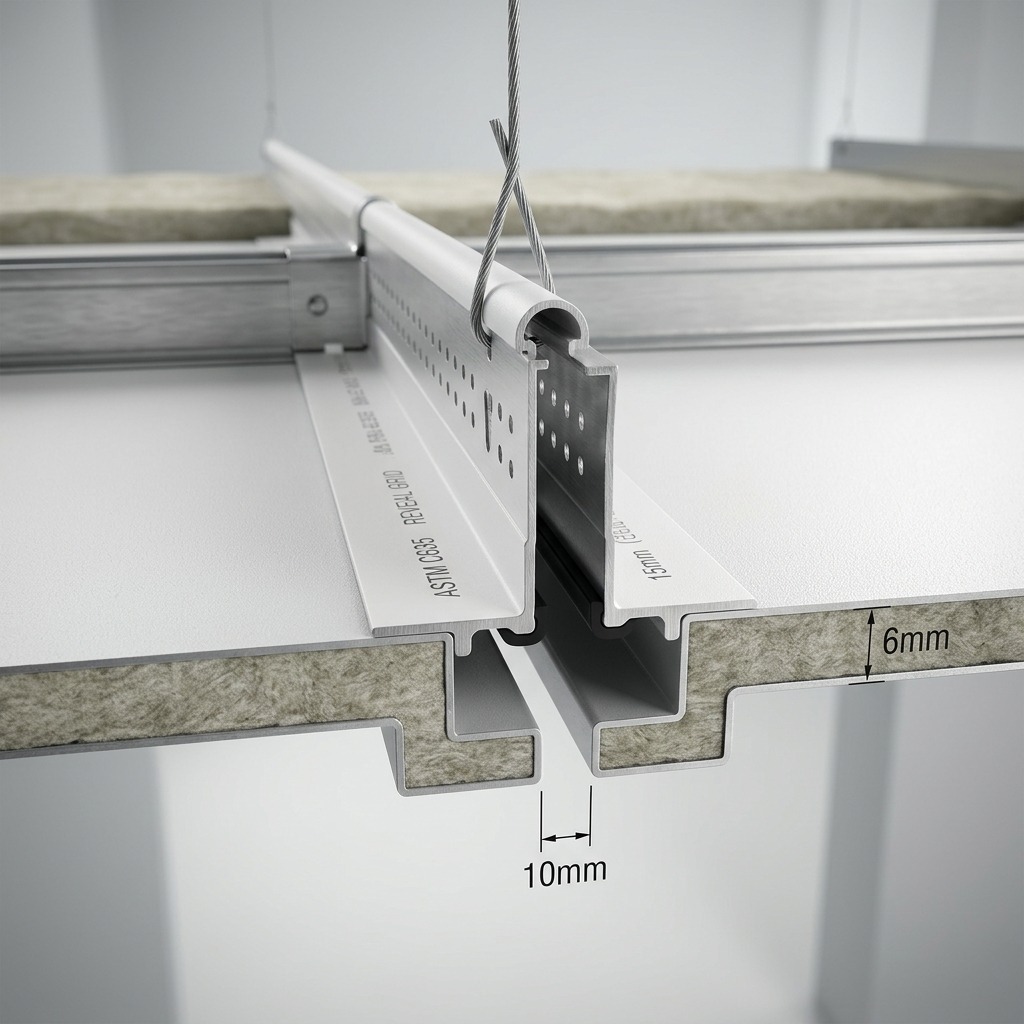

AVAYO Lay-In System Mechanism

Available in Reveal Flat and Ultra Line profiles, providing a clean, professional finish for diverse architectural requirements.

Suspension System Specifications

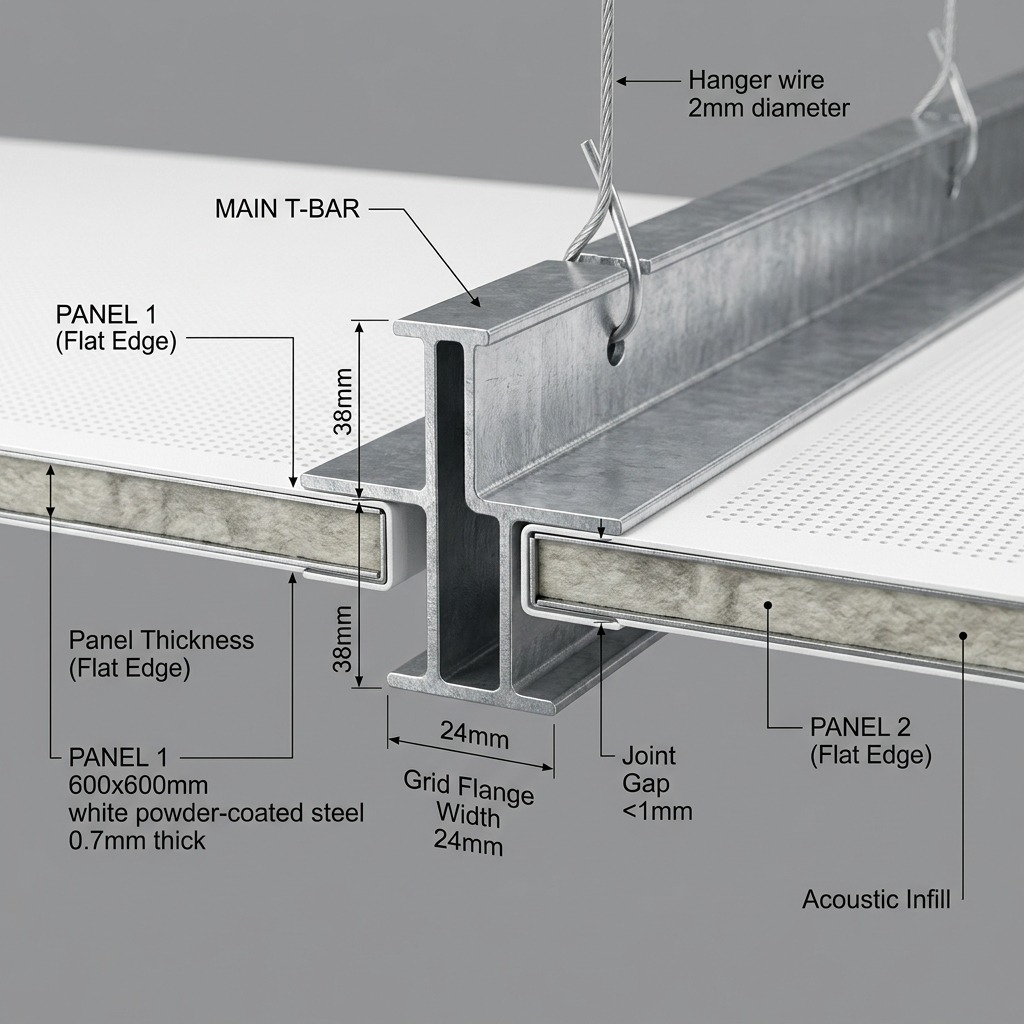

AVAYO Lay-In Components

Component Standard Consumption / Dimension
Main Tee Runner L = 3600 mm
Cross Tee Runner (Long) L = 1200 mm
Cross Tee Runner (Short) L = 600 mm
W-Wall Angle (24×24) L = 3600 mm
Wire Rod (4mm Ø with Eyelet + Hook) L = 1000 mm
Accessories Butterfly Clip
Acoustic Capabilities Acoustic felt backing for perforated panels
